Gladiator TP320SR
Gladiator TP320SR Gladiator TP320SR Gladiator TP320SR

Gladiator TP320SR

POWERSCREEN

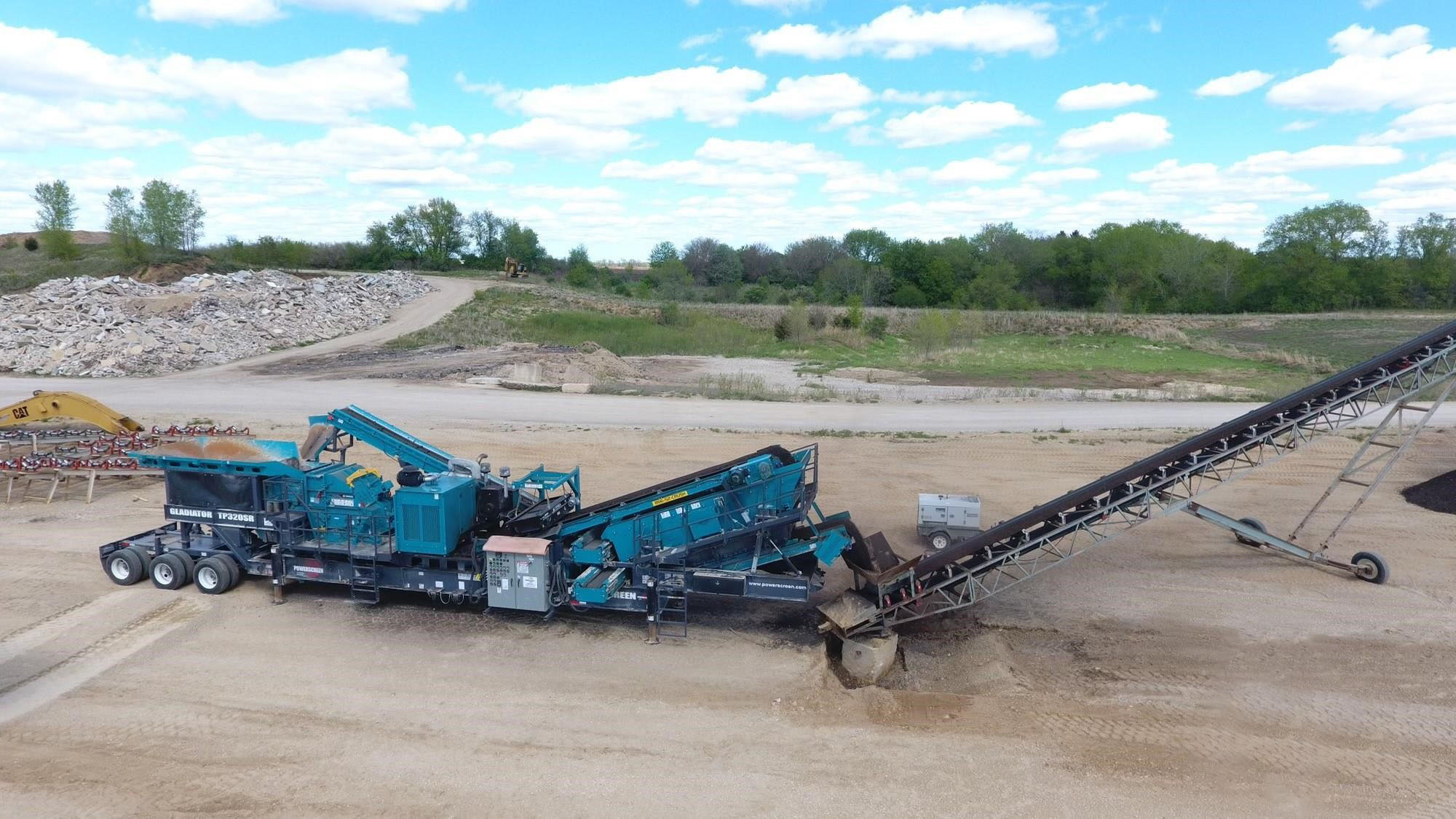

The Gladiator TP320SR is a newly introduced hybrid-electric drive, wheeled, closed-circuit impact crusher.
Download Brochure

Specifications

Output Potential
Up to 353 US tph (320tph)
Transport Dimensions
Width: 11'10" Length: 69' Height: 13'5"
Working Dimensions
Width: 18'11" Length: 68'10" Height: 16'6"
Weight
94,006 lbs

Next Steps

Finance Options

Arrange a call back

Share By Email

Share Now

Share by WhatsApp

Share Now

Why Choose this product?

The Gladiator TP320SR is a newly introduced hybrid-electric drive, wheeled, closed-circuit impact crusher.

This portable crushing and screening plant pairs the powerful Trakpactor 320 impact crusher with the Chieftain 1700 two-deck inclined screen for efficient recirculation.

The crusher is powered by a hydraulic clutch directly driven by a 350hp Scania diesel engine, while all other components operate electrically through a 150kw generator. With its large screenbox, wide conveyors, and low-maintenance electric drive system, this plant offers exceptional productivity and great value.

Download Brochure

Specification



Output Potential Up to 353 US tph (320tph)

Transport Dimensions Width: 11’10” Length: 69′ Height: 13’5″

Working Dimensions Width: 18’11” Length: 68’10” Height: 16’6″

Weight 94,006 lbs
